XB2 Pushbutton box-push button control box
XB2 series Pushbutton box are applicable to industrial control circuits with AC 50Hz or 60Hz, rated working voltage up to 415V and DC rated voltage up to 250V
- Description
- Inquiry
XB2 series Pushbutton box are applicable to industrial control circuits with AC 50Hz or 60Hz, rated working voltage up to 415V and DC rated voltage up to 250V. XB2 series Pushbutton box are used for the control of electromagnetic starters, contactors, relays and other electrical circuits. The Pushbutton box with indicator light is also applicable to the occasion of light signal indication.
Standard: GB / T 14048.5.
| Type | Function | Mark | |

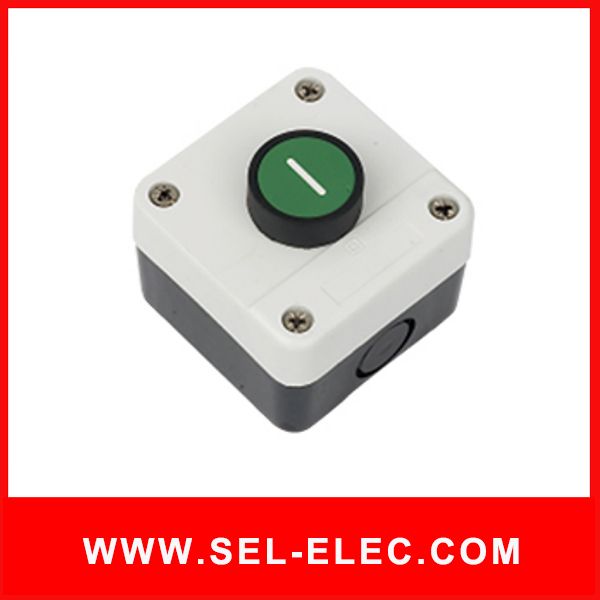

 XB2-B102 pushbutton box | |||
| XB2-B101H29 | Green Flat button,1NO | Button sign:
| |
| XB2-B102 | Green Flat button,1NO | pushbutton sign:
| |
| XB2-B103 | Green Flat button,1NO | pushbutton sign:
| |
| XB2-B111H29 | Red Flat button,1NC | Button sign:
| |
| XB2-B112 | Red Flat button,1NC | pushbutton sign:
| |
| XB2-J174 | Red 40 Mushroom head self-locking ,Rotary reset 1NC | ||
 emergency push button with box | XB2-B184 | Red 40 Mushroom head self-locking 1NC | |
2 way push button box | XB2-B211H29 | Green Flat button, 1NO;Red Flat button, 1NO | Button sign:
|
| XB2-B213 | Green Flat button,1NO;Red Flat button, 1NO | pushbutton sign:  | |
| XB2-B215 | Green Flat button, 1NO;Red Flat button, 1NO | Button sign:  | |
| XB2-B222 | White Flat button,1NO;Black Flat button,1NO | Button sign:  | |
 emergency push button with box | XB2-B211 | Green Flat button,1NO;Red Flat button, 1NO | |
 3 way push button box | XB2-B341H29 | Green Flat button,1NO; Red Flat button,1INC;Green Flat button,1NO | Button sign:  |
| XB2-B339 | Green Flat button,1NO; Red Flat button,1NC;Green Flat button, 1NO | Button sign:  | |
| XB2-B324 | Green Flat button,1NO; Red Flat button,1NC;Black Flat button,1NO | Button sign:  | |
| XB2-B334 | White Flat button,1NO; Red Flat button,1NC;Black Flat button,1NO | Button sign: | |
| XB2-B311H29 | White Flat button,1NO; Red Flat button, 1NC;Black Flat button, 1NO | Button sign: |
